Product Advantage

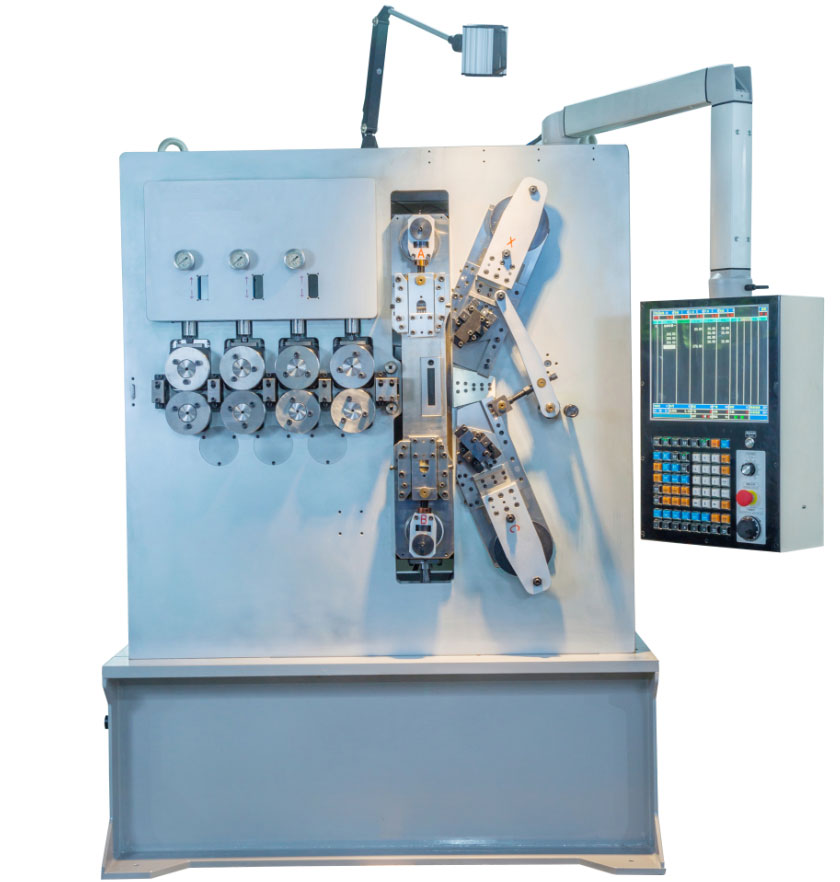

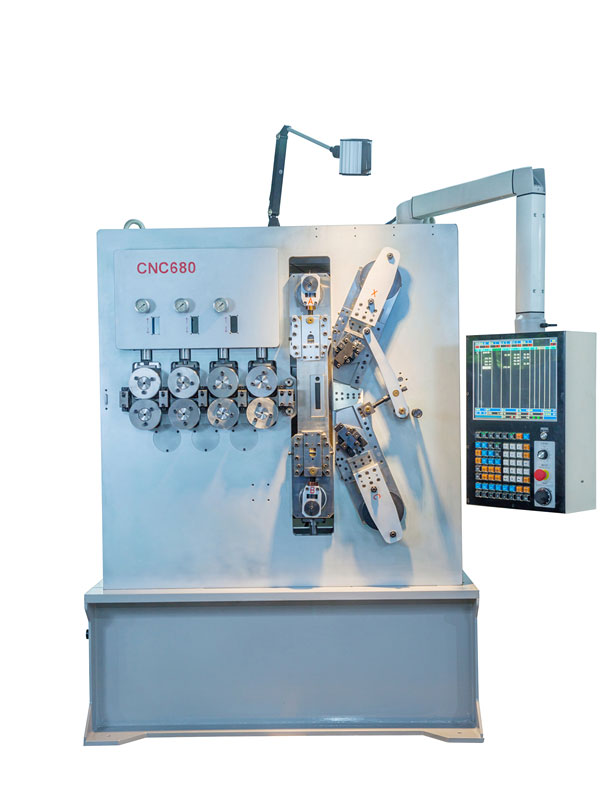

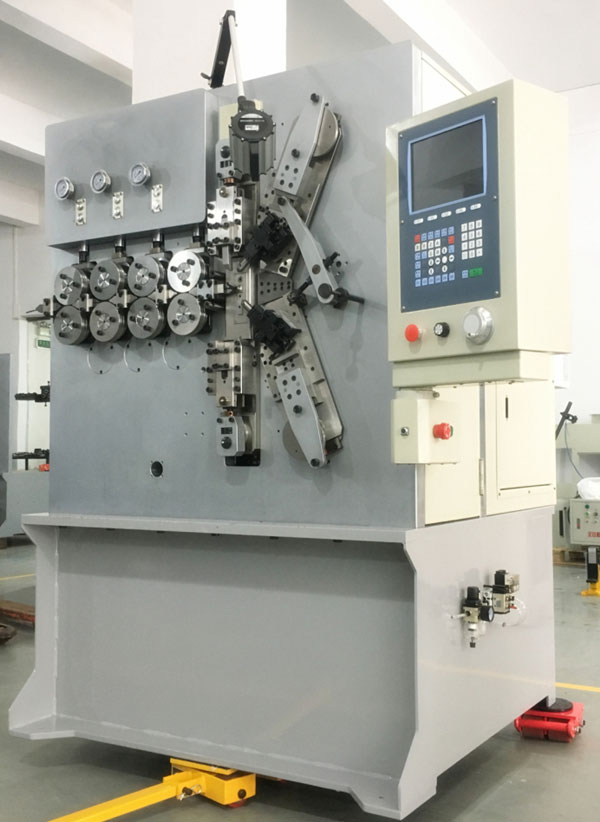

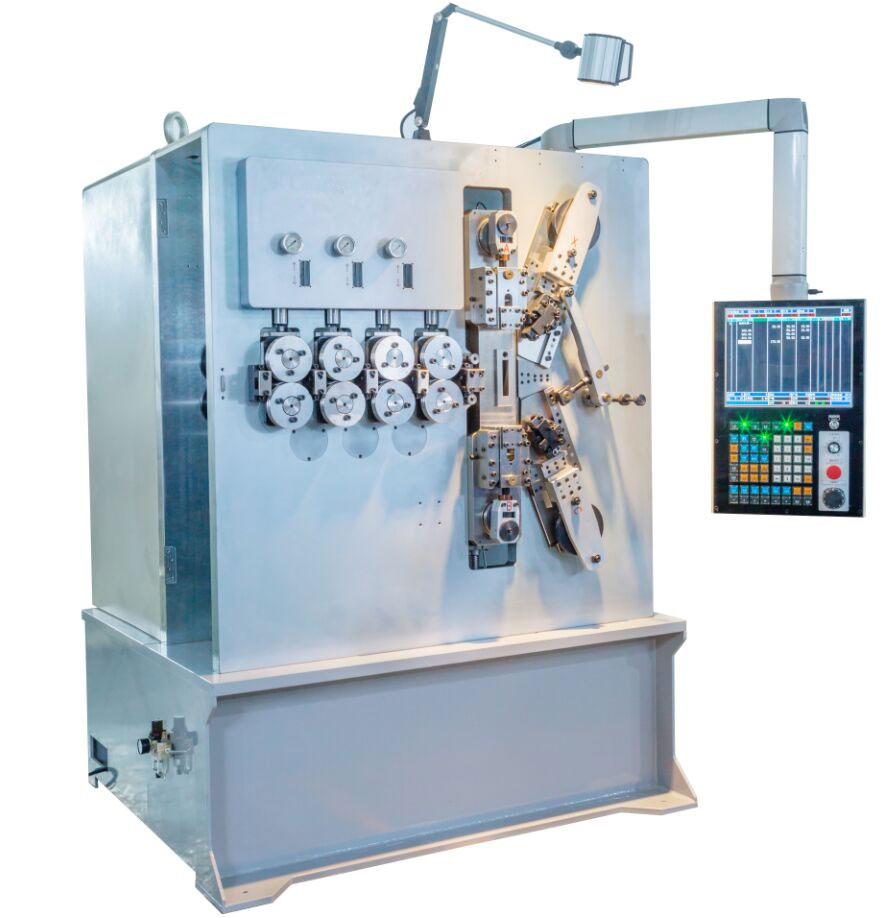

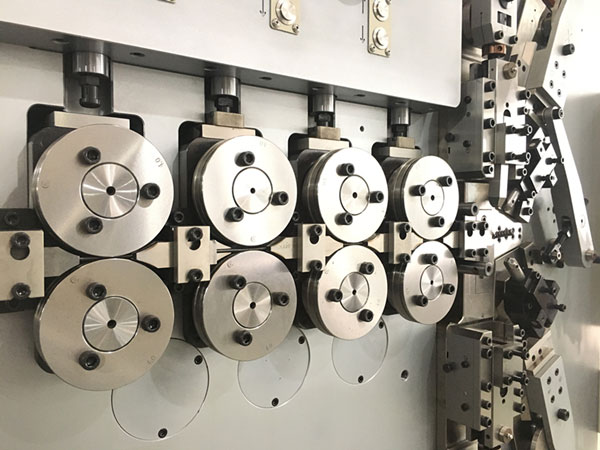

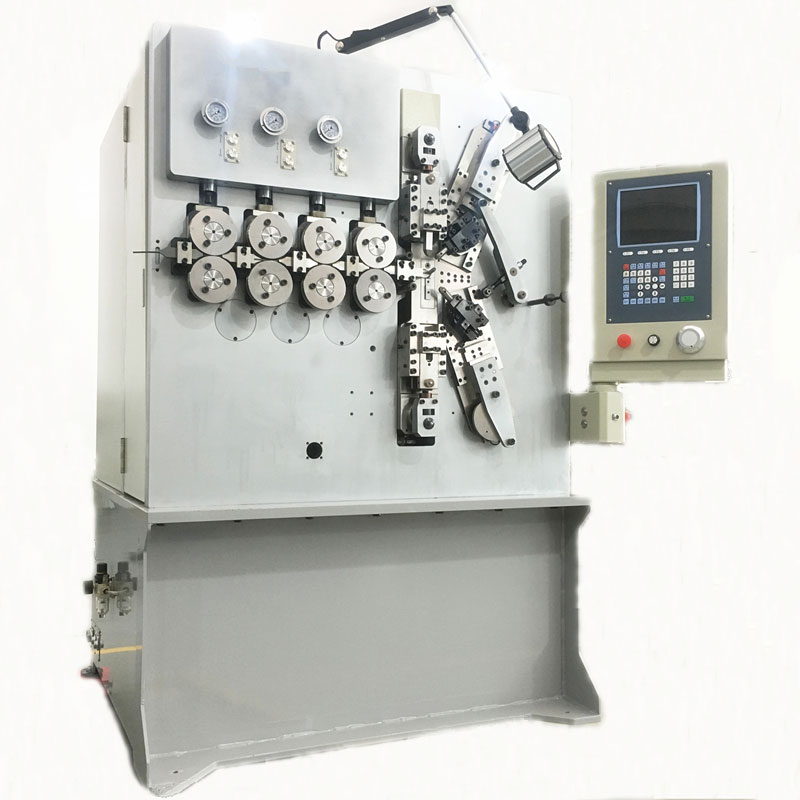

1. XD-680 compression spring machine is a 6-axis spring machine consisting of wire feeding axis ,upper cutter axis, bottom cutter axis, pitch axis. What’s more, we add a spring OD controlling axis, all these axis assures to make most precise springs with most efficiency.
2. The spring machine cutter can be adjusted inside and outside on computer easily and flexibly.thus saved manual work.
3. Servo motion system and servo drive controlled, 15" control panel, easy to operate.
4. All necessary work relating to spring production can be accomplished by finger on computer panel.
5. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
6. Computer can automatically decelerate according to the timing when the probe should be used.
7. Production speed can be increased or decreased at any time of running the machine.
8. Optional accessories: length gauge.
2. The spring machine cutter can be adjusted inside and outside on computer easily and flexibly.thus saved manual work.
3. Servo motion system and servo drive controlled, 15" control panel, easy to operate.
4. All necessary work relating to spring production can be accomplished by finger on computer panel.
5. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
6. Computer can automatically decelerate according to the timing when the probe should be used.
7. Production speed can be increased or decreased at any time of running the machine.
8. Optional accessories: length gauge.
Product Range:
This spring coiling machine makes various kinds of compression springs, wire coil, taper springs, double-taper springs, safe springs, clip spring as well as various simple torsion springs, its products can be applied to military, construction, motorcycles ect
This spring coiling machine makes various kinds of compression springs, wire coil, taper springs, double-taper springs, safe springs, clip spring as well as various simple torsion springs, its products can be applied to military, construction, motorcycles ect
Technical Parameters
|
Model: |
XD-680 |
|
Wire diameter: |
Φ3.00～8.00 mm |
|
Axes: |
6 axes |
|
Maximum Outside Diameter: |
120 mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed: |
80m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
22 KW |
|
Upper Cutter Servo Motor: |
5.5 KW |
|
Bottom Cutter Servo Motor: |
5.5 KW |
|
Pitch Servo Motor: |
3.8 KW |
|
OD Servo Motor: |
5.5 KW*2 |
|
Power AC: |
3-Phase 380V |
|
Dimensions (L*D*H): |
1900X1600X2000mm |
|
Wooden Case Dimension: |
2000x1700x2150mm |
|
Machine Weight: |
4000Kg |
|
Gross Weight: |
4500Kg |
Sample Display
This CNC spring machine produce various ultra-precision irregular springs, 3.0-8.0mm compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
Video
Product Details
1. Use servo control system to save energy 30-50 %.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
