Product Advantage
1, It combines precision CNC controlled servo-motion system and conveniences of mechanization.
2, It is suitable for various kinds of spring products with wire diameter 0.3--1.2mm through a simplified setup and programming procedure.
3, Servo motion system and servo drive controlled.
4, 5.7″control panel, easy to operate.
5, Cam can be moved clockwise or anti-clockwise; wire feed length can be changed while running the machine.
6, Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
7, Computer can automatically decelerate according to the timing when the probe should be used.
8, Production speed can be increased or decreased at any time running the machine.
2, It is suitable for various kinds of spring products with wire diameter 0.3--1.2mm through a simplified setup and programming procedure.
3, Servo motion system and servo drive controlled.
4, 5.7″control panel, easy to operate.
5, Cam can be moved clockwise or anti-clockwise; wire feed length can be changed while running the machine.
6, Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
7, Computer can automatically decelerate according to the timing when the probe should be used.
8, Production speed can be increased or decreased at any time running the machine.

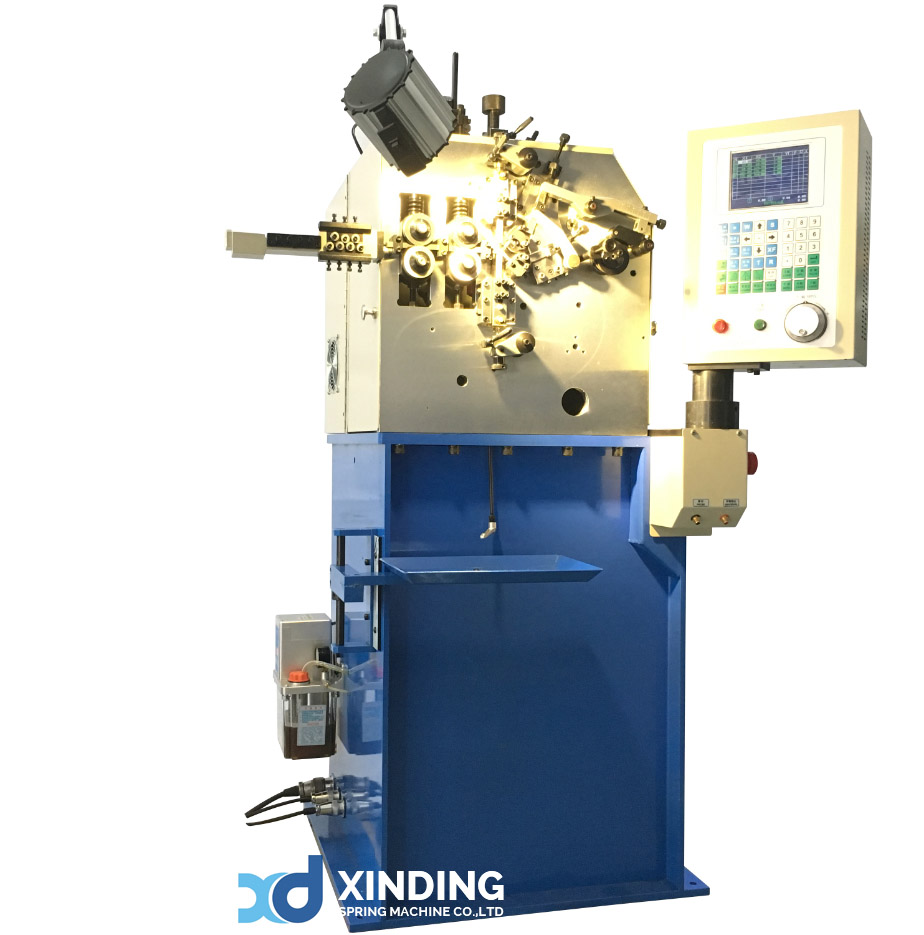

Technical Parameters
| Model: | XD-212 |
| Wire diameter: | φ0.30～1.20mm |
| Axes: | 2 axes |
| Maximum Outside Diameter: | 30mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 550pcs/min |
| Feed Speed: | 300m/min |
| Memory Number: | 1000PCS |
| Wire Feed Servo Motor: | 1.5KW |
| Cam Servo Motor: | 1.5KW |
| Power AC: | 3-Phase 220V |
| Dimensions (L*D*H): | 700X550X1600mm |
| Wooden Case Dimension: | 1000x1050x1600mm |
| Machine Weight: | 500Kg |
| Gross Weight: | 550Kg |

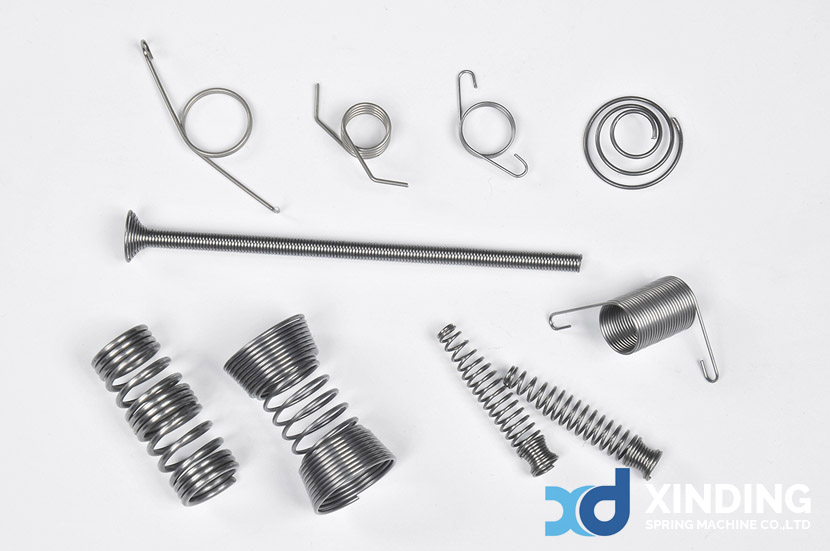

Sample Display

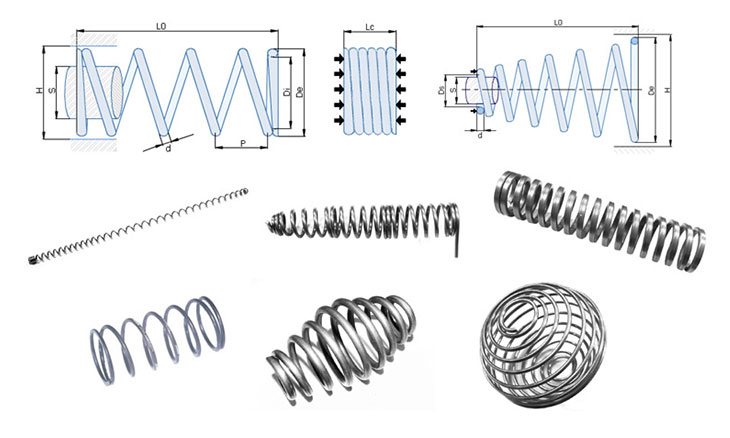

This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
Video
Product Details
1. Use servo control system to save energy 30-50 %.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
