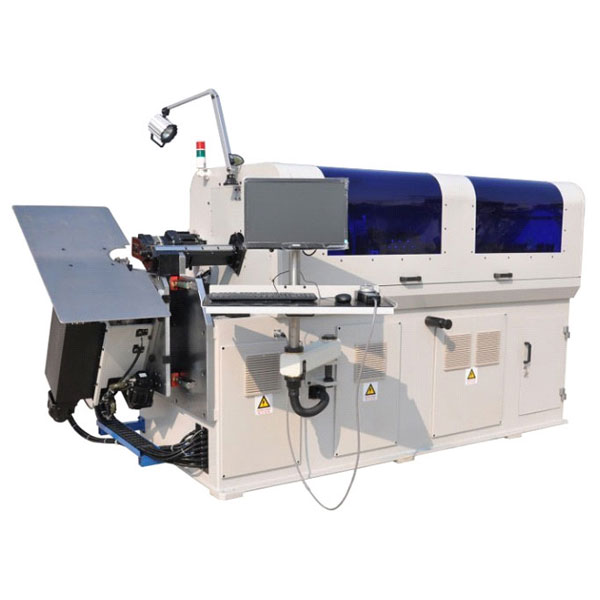

    XD-WF608 Wire Bending Machine

    Introduction：
    XD-WF608Wire Bending Machine, The coiling spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.

    GET A QUOTE

    Wire Bending Machine


    1. XD-WF607 is a seven axis wire forming for making all kinds of wire forming products.

    2. XD-WF607 adopts advanced computer technology.
    3. Optional accessories: bending tools, rolling axis, safety door.



    XD-608 wire bending machine



    Product Range:

    Wire forms products from all kinds of materials. wire bending machine.

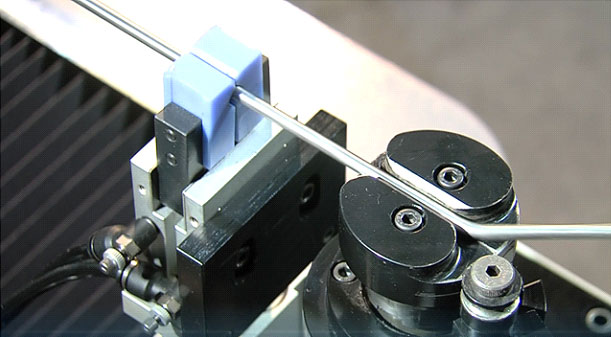

    Wire Bending Machine Details Wire Bending Machine Sampls



    Technical Parameters:



    Model:

    XD-WF608

    Wire diameter:

    Ø2.0-6.0mm（soft wire）
    Ø2.0-4.0mm（hard wire）

    Max. wire feeding speed:

    54m/min

    Dimensions (L*D*H):

    3333×2035×1620mm

    Machine Weight:

    3000KG

    Distance between the bending head and machine body:

    594mm

    /p>

    Axes Feature



    Bending (inside):

    1.3KW

    Bending (outside):

    1.3KW

    Bending(U/D):

    1.3KW

    Bending(L/R):

    1.3KW

    Cutting axis:

    1.3KW

    Support table U/D axis:

    0.85KW

    Wire Feed axis:

    3.0KW

    Rotating Wire axis:

    3.0KW

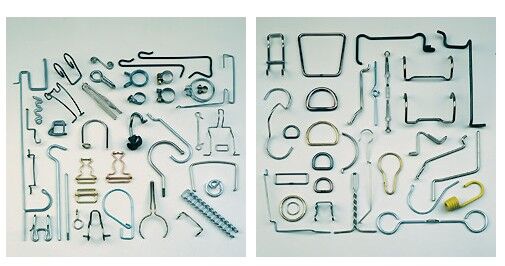

    Sample Display



    This CNC spring machine produce various ultra-precision irregular springs, compression springs, flat line(spiral power spring)and line molding spring etc.
