The processing range of CNC spring pressing machine

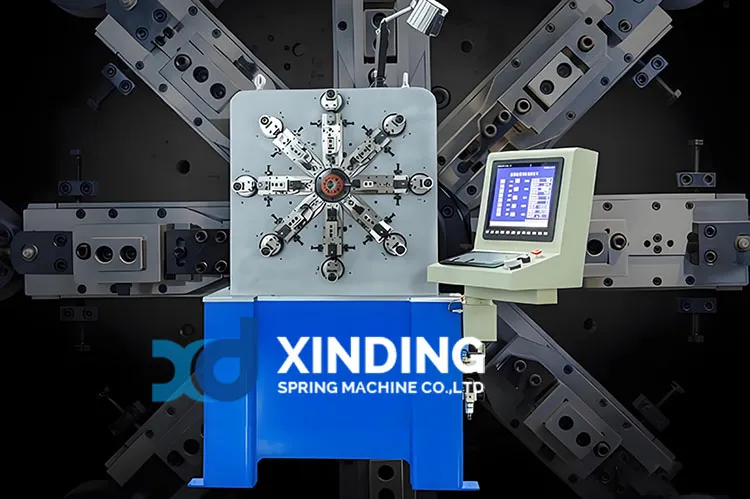

The CNC spring press machine is a core equipment for wire forming that integrates precision machinery, servo control, and digital programming. Relying on multi axis linkage, parametric programming, and high-speed forming capabilities, it can stably process various types of spring and wire forming parts, widely covering the precision elastic component needs of industries such as electronics, home appliances, automobiles, machinery, hardware, and medical. The CNC compression spring machine is based on the compression spring as the forming object. By replacing cutting tools, adjusting programs, and matching auxiliary mechanisms, it can achieve integrated processing of multiple types of elastic parts and wire parts, meeting the flexible production needs of "one machine with multiple capabilities".

1、 Wire diameter processing range
The wire diameter coverage span of different positioning models is relatively large. Entry level small models can process wire diameters of 0.15~1.0mm, mainstream general-purpose models cover 0.2~3.5mm, and large-sized models can support wire diameters up to 2.0~6.0mm. Some heavy-duty models can even adapt to steel processing with wire diameters of 8.0mm.

2、 Spring size range
The maximum outer diameter of springs that can be processed by conventional models can reach 90mm, and there is no upper limit to the length of wire feeding, which can meet the production needs of compression springs of different length specifications.

3、 Scope of compatible materials
It can be adapted to circular steel wires, as well as special materials such as rectangular section wires and multi strand steel cables. Under the cold rolling process, it can directly process normal temperature steel wires with a wire diameter of ≤ 12mm. With the hot rolling module, it can also process heated steel wires with a wire diameter of 12mm or more.

4、 Can produce spring types
In addition to basic equidistant cylindrical compression springs, it can also process irregular compression springs such as pagoda springs, convex/concave springs, double cone springs, oil seal springs, battery springs, etc. Some multi axis models can also expand the production of simple tension springs, torsion springs and other wire formed parts.

The CNC spring press machine has the processing capability of multiple categories, wide wire diameters, all materials, high precision, and wide adaptability, breaking through the limitations of traditional equipment and achieving full coverage from micro precision springs to large-sized industrial elastic parts.Xinding CNC spring pressing machine redefines the efficiency and quality standards of spring manufacturing with millimeter level precision control and intelligent production mode.Choosing Xinding CNC spring pressing machine choosing stable quality, efficient production capacity, and lower comprehensive costs, and installing a strong engine for the high-quality development of the enterprise.
