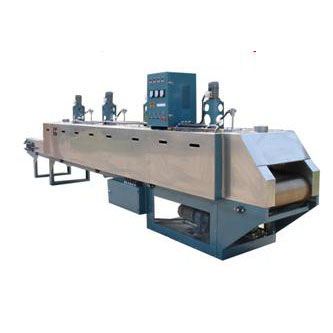

    XDR520-690 Recirculating Furnace

    Introduction:
    The continuous furnaces are produced by adopting advanced technologies abroad.
    Main features include precision temperature control, energy saving, and less pollution.

    GET A QUOTE

    Details

    The continuous furnaces are produced by adopting advanced technologies abroad.
    Main features include precision temperature control, energy saving, and less pollution.
    It take about 5-120 minutes from the temperature of 50-500℃ (adjustable)to complete heat treatment of the work pieces(e.g spring, chain, standard metal pieces, hardware pieces)which are put into the entrance of the furnace on the stainless steel belt.
    The furnaces are equipped with air blower to keep the temperature ever.
    The power of the furnace range from 8 to 137 kw.
    Work pieces can be produced constantly with the furnace in the production line.
    Our furnaces are exported to Europe, America and Southeast Asia.



    XDR520-690 Recirculating Furnace





    Specification:

    Model

    Max temperature

    Power

    Temperature
    control

    L*W*H
    Effective heating area(M)

    L*W*H
    Overall dim(M)

    XD-TF520

    500℃

    30KW

    2

    2×0.5×0.09

    3.4×1.1×1.9

    XD-TF530

    40KW

    3

    3×0.5×0.12

    5.1×1.1×1.9

    XD-TF630

    48KW

    3

    3×0.6×0.12

    5.1×1.2×1.9

    XD-TF540

    55 KW

    4

    4.5×0.5×0.12

    6.7×1.1×1.9

    XD-TF640

    65 KW

    4

    4.5×0.6×0.12

    6.7×1.2×1.9

    XD-TF740

    65 KW

    3

    4×0.7×0.12

    6.1×1.3×1.9

    XD-TF840

    93KW

    4

    4.5×0.8×0.12

    7×1.4×1.9

    XD-TF650

    78 KW

    4

    5×0.6×0.15

    7.2×1.2×1.9

    XD-TF670

    93 KW

    5

    7×0.6×0.2

    9.2×1.2×1.9

    XD-TF590

    120 KW

    5

    9×0.5×0.2

    11×1.3×1.6

    XD-TF690

    137 KW

    5

    9×0.6×0.2

    11×1.4×1.6
