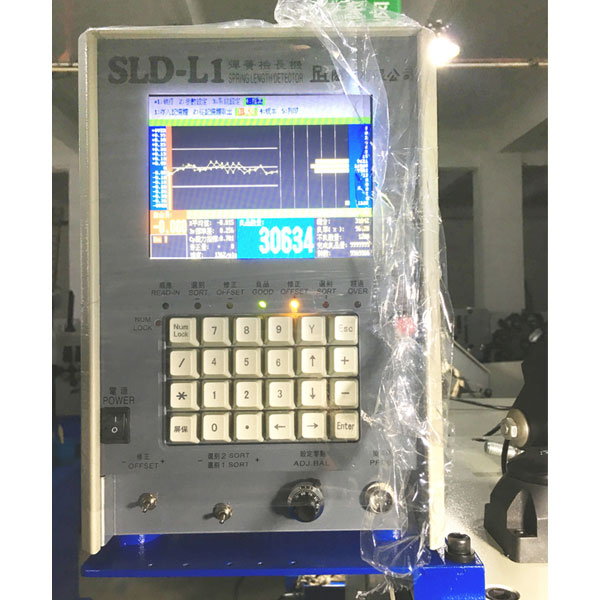

    SLD-L1 Spring Length Gauge

    Introduction:
    SLD-L1 Spring Length Gauge Machine

    GET A QUOTE

    Product Advantage



    Spring Length Gauge Machine

    10.4-inch color liquid crystal display industry;
    Chinese / English interface, the state system for different customers;
    U disk support function, easy software upgrades;
    It supports USB and RS232 communication function, convenience and computer on-line;
    Using ARM9 processor, higher processing efficiency;
    It supports 4-axis servo control;
    It supports 8 groups of probe cylinders;
    An optional hand-held box, easy to adjust the machine;
    Programming intuitive and easy to learn;
    Complete information presentation system.

    4-axis servo motor control, can be individually synchronized motion or movement, flexible and convenient way of programming;
    8 set of probes and cylinder select, high-speed probe testing to ensure accurate processing of the spring;
    With feed bobbin winding line break alarm detection and wire frame accelerated output delivery, flexible control feeding bobbin;
    Handwheel debugging process and test process (or inching debugging process) and other functions, debugging more convenient;
    Flexible jump function, with check-growth device for automatic separation of waste spring;
    The outer diameter can be automatically corrected, pitch correction, sending length correction;
    You can not stop running to change the processing procedures, improve work efficiency;
    Complete and intuitive system status prompt, the user can find the problem, easy troubleshooting;
    Have multiple sets of system parameters setting function, it can be very convenient for system parameters and system maintenance parameters change, and people with a password authentication to prevent unauthorized changes;
    Storage capacity, up to 1000 processing file storage space;
    Programming intuitive and easy to learn;
    The system easy to upgrade, you can download the latest program updates through U disk.

    Sample Display



    This CNC spring machine produce various ultra-precision irregular springs, compression springs, flat line(spiral power spring)and line molding spring etc.
